CAMPUS DELAY / BUFFER

It’s important to note that even though there are staggered times for the campuses starting 5 minutes after the hour, this is to account for the stream delay AND amount of buffer that is needed at the campuses.

The recommendation for a stable stream is to run 5 minutes of buffer. 5 minutes of buffer + 1 minute of encoding delay = 6 minutes minimum time closest to live. For example, if Vacaville’s sermon starts at :35, the campuses should plan on being taking the stream at :41. (These times are dependent on Vacaville’s worship/transition time)

One thing to note: if campuses are running with less than the recommended buffer, it introduces more possibilities for anomalies or interruptions of service.

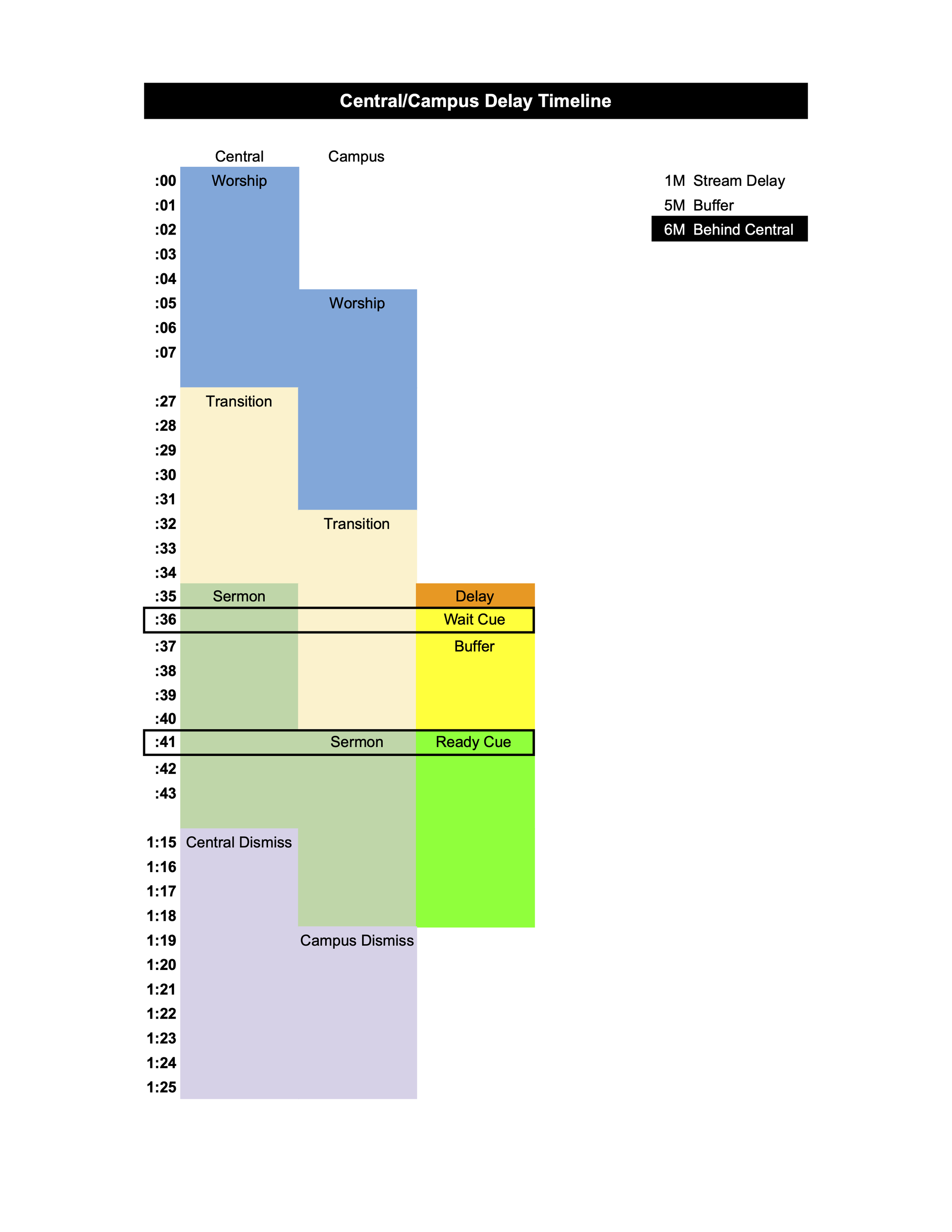

See timeline illustration to view delay. and estimated times.

CAMPUSES NOTE:
430P SAT / 800A SUN - VV Campus Arrival Time.
435P SAT / 805A SUN - Audio and Video signal to campuses.

RESI TUTORIAL

Select Event

  • Click the event you want to broadcast in the Events tab.

  • Click Select Event.

  • Click CLEAR CACHE on the pop up window.

Event Cues

  • GoTo

  • Countdown

Play Back the Video to Your Audience

The bottom section of the decoder interface is how you’ll play, stop, lock, and scrub through your events. You can also control how far your event will be delayed from live.

  • To play a video, click the Play button.

  • To pause a video at any time, click the Pause button.

  • Use the Rewind or Forward arrow keys to move backward or forward through the event. Each time you click, the video will scrub once the amount of time in the Seek Amt. bar. For example, if you set it to 1 second, when you click Forward once, it will scrub 1 second forward.

START OF DAY

At the start of the day campuses should start the stream, and play “5 minuted from live”

  • TURN ON THE RESI DECODER

  • HIT EVENTS TAB AND SELECT TODAYS DATE
    Stream starts at 430p Sat / 730a Sun
    **Vacaville production team arrives at 430 Sat / 800a Sun**
    **Expect Audio/Video feed at 435 Sat / 805a Sun**

  • PLAY STREAM

  • DELAY FROM LIVE BY “5 MINUTES”
    This will ensure we have the proper buffer. Play delayed stream.

SERVICE

  • When the Sermon/Start cue from Central are sent. you will see a countdown to cue time on the event cues page. Send that amount of time as a WAIT cue to the confidence

  • When the countdown hits 0:00, PAUSE on Resi, and send READY CUE to the confidence.

CUES

ANNC

When VV is in announcements, this cue should be put on the confidence monitor to let the stage know Vacaville is in announcements.

WAIT (YELLOW)

Wait cue: Campuses see “Sermon Cue” from Vacaville, waiting for 5:00m of buffer.  Wait cue is a 4:00-5:00 minute countdown in yellow so that you know how long you have prior to going to the sermon.

...Campuses should be anticipating WAIT cue between :36-38 dependent on Vacaville timing.

READY (GREEN)

Campuses have 5 minutes of buffer and are ready to take the stream.

...Campuses should be anticipating READY cue between :41-43 dependent on Vacaville timing/announcements
